CN0173 - Step Pulse Generator

1MHz Max
Settable Accel / Decel
Settable Base Speed

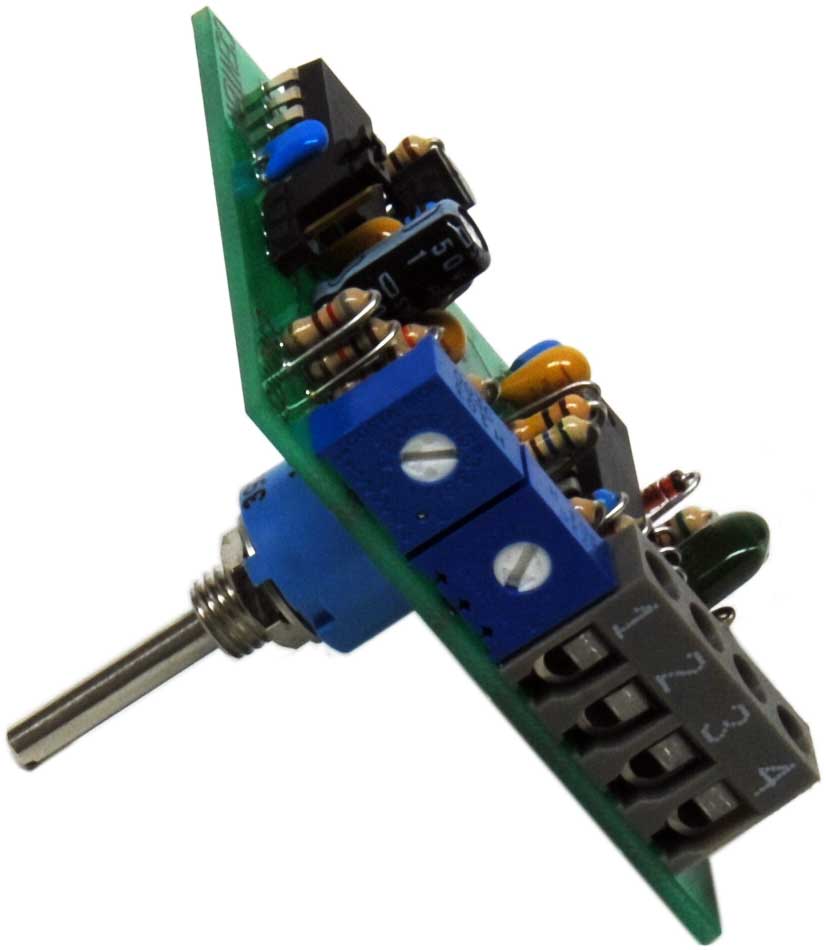

The CN0173 is a panel mounted speed control for step motor drives. The speed is set manually by the "Speed" potentiometer. The rate of acceleration and base speed are set by the respective trimpots.

Switching the "Start" input to ground causes the motor to begin accelerating from the "Base Speed" at a rate set by the "Acceleration" trimpot until the set speed is reached. The motor continues to run at this rate until the "Start" switch is opened. The motor then decelerates down to the base speed and then stops.

The CN0173 panel mounts through a ¼ inch hole and the "Speed" potentiometer takes a .125 inch shaft adjustment knob.

The CN0173 is available in different maximum step frequencies of 1 kHz, 5 kHz, 10 kHz, 20 kHz, 30 kHz, 40 kHz, 50 kHz, 100 kHz, or 1 MHz.

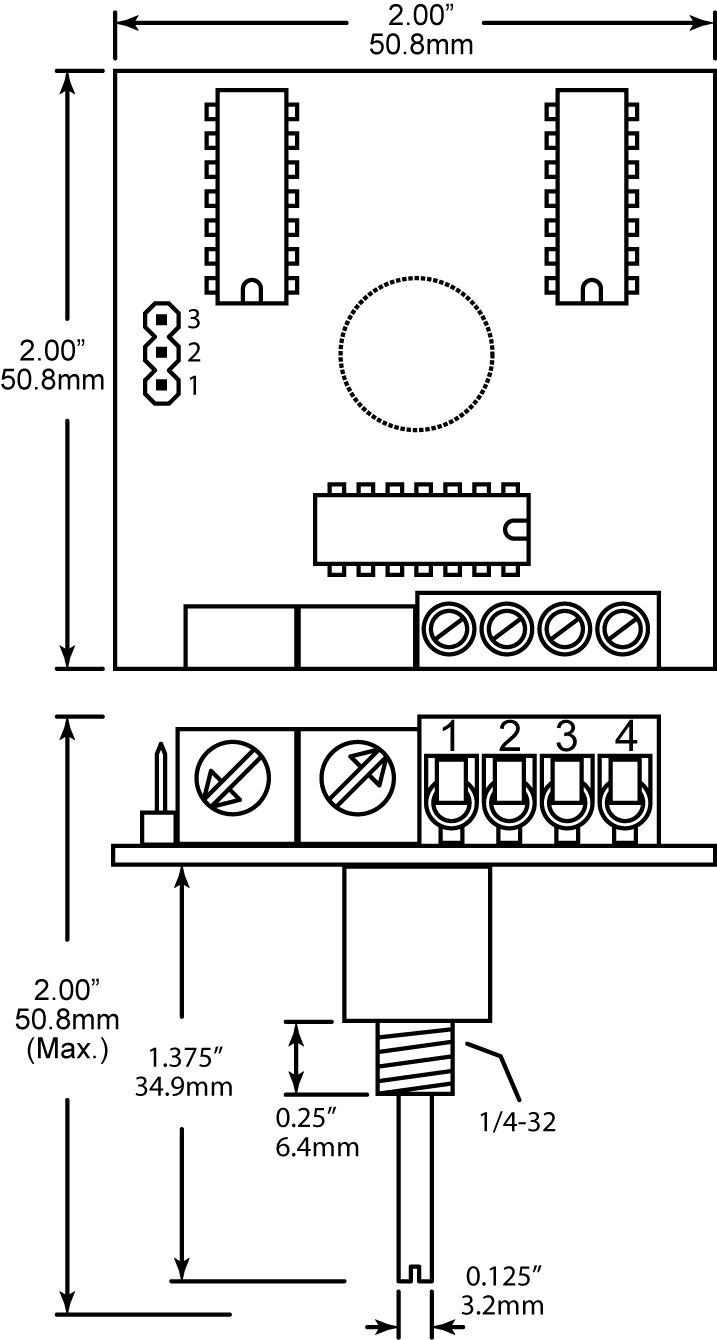

CN0173 diagram

Specifications



Power Supply Voltage: 5 VDC

Current: 30 mA

Step Frequency: 0 to 100 kHz (alternate maximum step frequencies are available)

Acceleration Time: 50 ms to 10 sec

Interface: TTL compatible

Operating Temperature: 0 to 70 Deg C
(32 to 158 Deg F)

Weight: .9 Oz (25.5 g)

Size: 2" X 2" X .2"
(50.8mm X 50.8mm X 5.1mm)

Made in USA

Operator's Manual

Large Drawing


Contact us about pricing.
