Please note that any given CN0162 comes with 4 user-selectable micro-step resolutions that are factory set out of a possible 21. Therefore if you decide to order from us, we would need to know which resolution(s) you require. The standard version comes with the resolutions 10, 25, 50, and 125 microsteps per full-step; although just about any resolution between full-step to 256 microsteps/full-step are available. The price is the same regardless of which resolutions you choose.

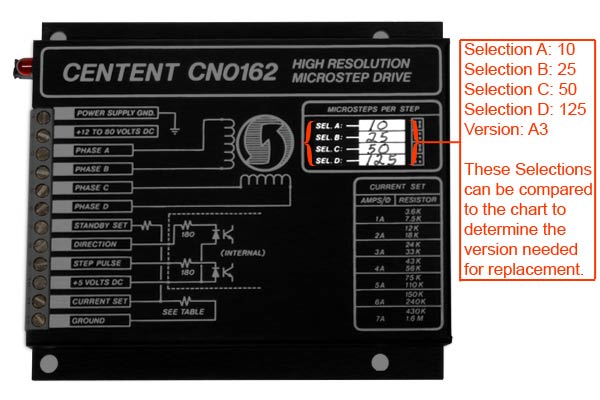

If you are replacing an existing CN0162, please look on the face of the driver and note the four numbers in four white fields labled as "Sel A, Sel B, Sel C, and Sel D," as indicated in the picture below.
We stock a large number of CN0162 versions with standard resolution sets which are typically available for immediate delivery. For quicker ordering, you may look at the table below and indicate the version you would like (i.e. CN0162-A3).
Selection A | Selection B | Selection C | Selection D | Version |
1 | 2 | 4 | 10 | C54 |
1 | 2 | 8 | 32 | B32 |
1 | 2 | 10 | 20 | C5 |
1 | 2 | 10 | 50 | A16 |
1 | 2 | 10 | 100 | C14 |
1 | 2 | 10 | 125 | A20 |
1 | 2 | 20 | 32 | D70 |
1 | 2 | 32 | 256 | B48 |
1 | 2 | 100 | 200 | C46 |
1 | 4 | 8 | 16 | B47 |
1 | 8 | 16 | 32 | B67 |
1 | 8 | 32 | 128 | B19 |
1 | 8 | 32 | 256 | B71 |
1 | 10 | 16 | 25 | C18 |
1 | 10 | 25 | 50 | C8 |
2 | 4 | 8 | 16 | C1 |
2 | 5 | 10 | 20 | C52 |
2 | 5 | 10 | 25 | C12 |
2 | 5 | 10 | 100 | C66 |
2 | 5 | 10 | 125 | A22 |
2 | 5 | 25 | 125 | A55 |
2 | 8 | 16 | 32 | D59 |
2 | 8 | 32 | 128 | B40 |
2 | 8 | 32 | 256 | B72 |
2 | 10 | 32 | 64 | D24 |
2 | 10 | 50 | 125 | A65 |
4 | 8 | 10 | 16 | C6 |
4 | 8 | 10 | 64 | D9 |
4 | 8 | 16 | 32 | B7 |
4 | 16 | 32 | 128 | B53 |
4 | 20 | 50 | 100 | C11 |
5 | 8 | 10 | 16 | C31 |
5 | 8 | 25 | 40 | C37 |
5 | 10 | 16 | 25 | C51 |
5 | 10 | 16 | 100 | C38 |
5 | 10 | 20 | 40 | C61 |
Selection A | Selection B | Selection C | Selection D | Version |
5 | 10 | 25 | 50 | A15 |
5 | 10 | 50 | 100 | C56 |
5 | 10 | 50 | 250 | A25 |
8 | 10 | 16 | 20 | C23 |
8 | 10 | 16 | 32 | D45 |
8 | 10 | 32 | 64 | D26 |
8 | 16 | 32 | 64 | B69 |
10 | 5 | 250 | 2 | A43 |
10 | 16 | 20 | 32 | D62 |
10 | 16 | 25 | 50 | C30 |
10 | 16 | 32 | 64 | D35 |
10 | 20 | 25 | 50 | C13 |
10 | 20 | 40 | 50 | C44 |
10 | 20 | 40 | 80 | C41 |
10 | 20 | 50 | 2 | C50 |
10 | 20 | 50 | 100 | C17 |
10 | 20 | 100 | 200 | C60 |
10 | 20 | 128 | 160 | D34 |
10 | 25 | 50 | 100 | C29 |
10 | 25 | 50 | 125 | A3 |
10 | 25 | 50 | 250 | A39 |
10 | 32 | 20 | 40 | D58 |
10 | 50 | 125 | 2 | A42 |
10 | 50 | 125 | 250 | A33 |
10 | 250 | 50 | 125 | A64 |
16 | 32 | 64 | 128 | B21 |
20 | 50 | 100 | 200 | C63 |
25 | 50 | 100 | 200 | C27 |
25 | 50 | 125 | 250 | A4 |
32 | 64 | 128 | 256 | B28 |
40 | 16 | 50 | 25 | C49 |
40 | 50 | 80 | 100 | C36 |
50 | 10 | 20 | 100 | C57 |
100 | 50 | 16 | 10 | C2 |
100 | 50 | 25 | 10 | C68 |
We can expedite your order if you provide to us the version you require. If you do not find the resolutions you require, you may look at page 18 of the manual to see the available combinations.
Operator's Manual - Chart of available resolutions
